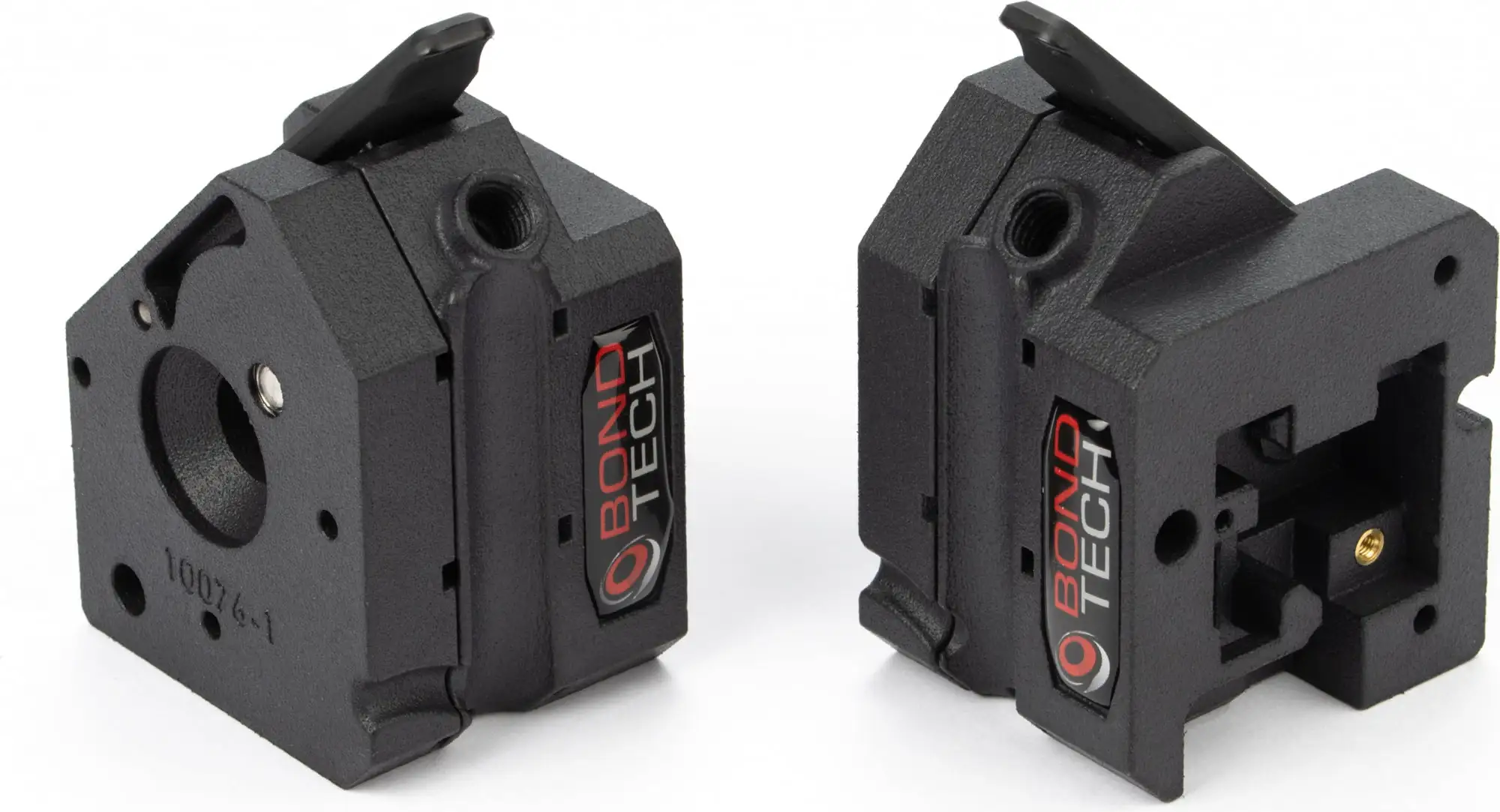

BondTech IFS Extruder For The Prusa Mini, 1 Pc

Bondtech Internal Filament Sensor Extruder

The Bondtech Dual Drive IFS extruder is a further development of the high-resolution extruder upgrade for the Prusa Mini.

Compatible with the filament sensor

The IFS extruder enables the integration of the new filament sensor in the housing of the extruder on the Prusa Mini / +.
However, the IFS extruder can also be used without a filament sensor. To install the filament sensor in the IFS extruder later, only a short assembly is required.

Hardened drive gears for processing abrasive materials

Hardened drive gears allow the use of abrasive materials that would otherwise wear out the gears of the original feeder.

Adjustable tension

The thumbscrew tensioner allows the user to fine-tune the pressure exerted on the filament by the drive gears. This gives you the opportunity to adjust the settings to your preferences and optimise them for the type of material used.

Quick release

In order to be able to change material in no time at all, simply operate the quick-release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.

More choice of materials

The dual drive gears made of hardened steel allow working with common and abrasive materials.

Included in this kit

• 1x Bondtech IFS extruder for Prusa Mini
• 1x 10076-4 IFS magnet holder (PA12)
• 1x 10076-5 IFS lever (PA12)
• 1x 15112 IFS extruder plug (HT-PLA)
• 3x cable ties made of black nylon
• 4x M3x35 burnished steel screws
• 1x M3x12 burnished steel screw
• 1x brass motor gear
• 1x knurled screws

Not included in the set

• Prusa filament sensor
• Filament sensor magnets
• Filament sensor steel ball
