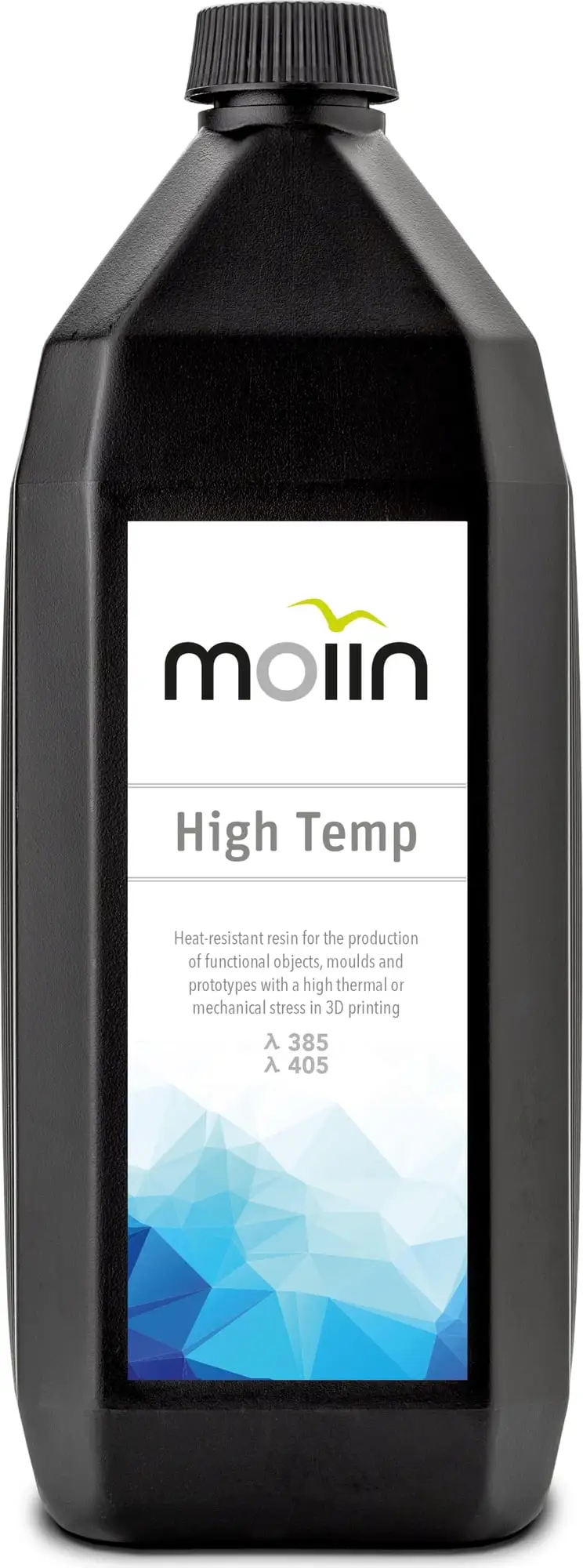

Moiin High Temp Resin, 1.000 G

Moiin High Temp Resin is a thermally resilient resin that was specially developed for use in high temperature ranges. The heat-resistant resin is ideal for the production of functional objects and prototypes that have to be precise and thermally resilient.

Due to its versatile properties, Moiin High Temp can be used in numerous areas where fits and tolerances are crucial. For example, the resin can be used for microfluidic parts for hot gas and liquid flows, prototypes for kitchen appliances or precise engine compartment components.

As a high-performance all-rounder, the highly stable material can withstand loads even under extreme conditions. High-temperature printing up to 60 ° C and the use of rapid tooling are also possible with the appropriate know-how.

Properties of Moiin High Temp

• Excellent thermal stability
• Very good chemical resistance
• High mechanical strength
• High temperature printing up to 60 ° C possible
• Optimally balanced viscosity
• Excellent strength
• Minimised shrinkage
• Easy handling
• High printing accuracy
• Transparent colour

Properties of Moiin High Temp in detail

• Viscosity → 0.7 Pas
• Tensile strength → 33.1 MPa
• Flexural strength → 87 Mpa
• Flexural modulus → 2.8 Gpa
• Shore D hardness → 87
• Heat resistance HDT A (1.8 MPa) → 124 ° C
